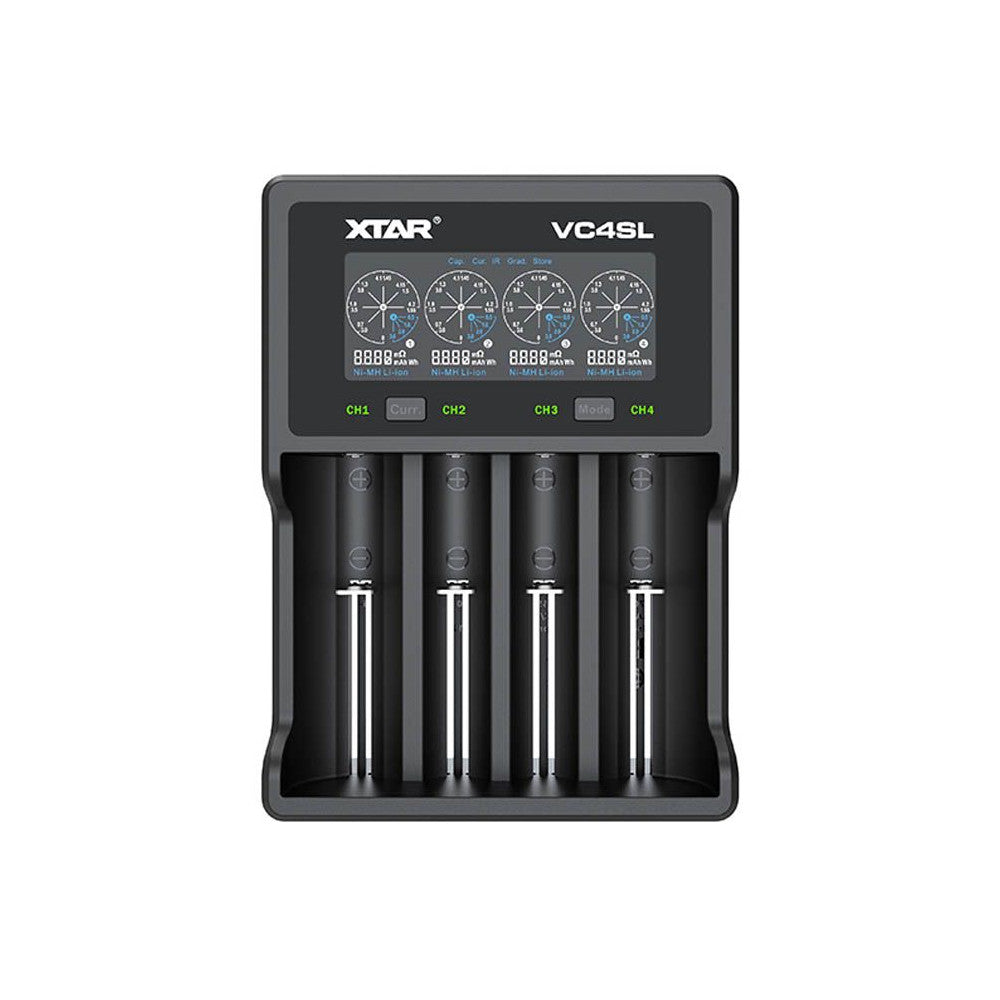

XTAR VC4SL Fast Charging 4-Bay Battery Charger and Analyser

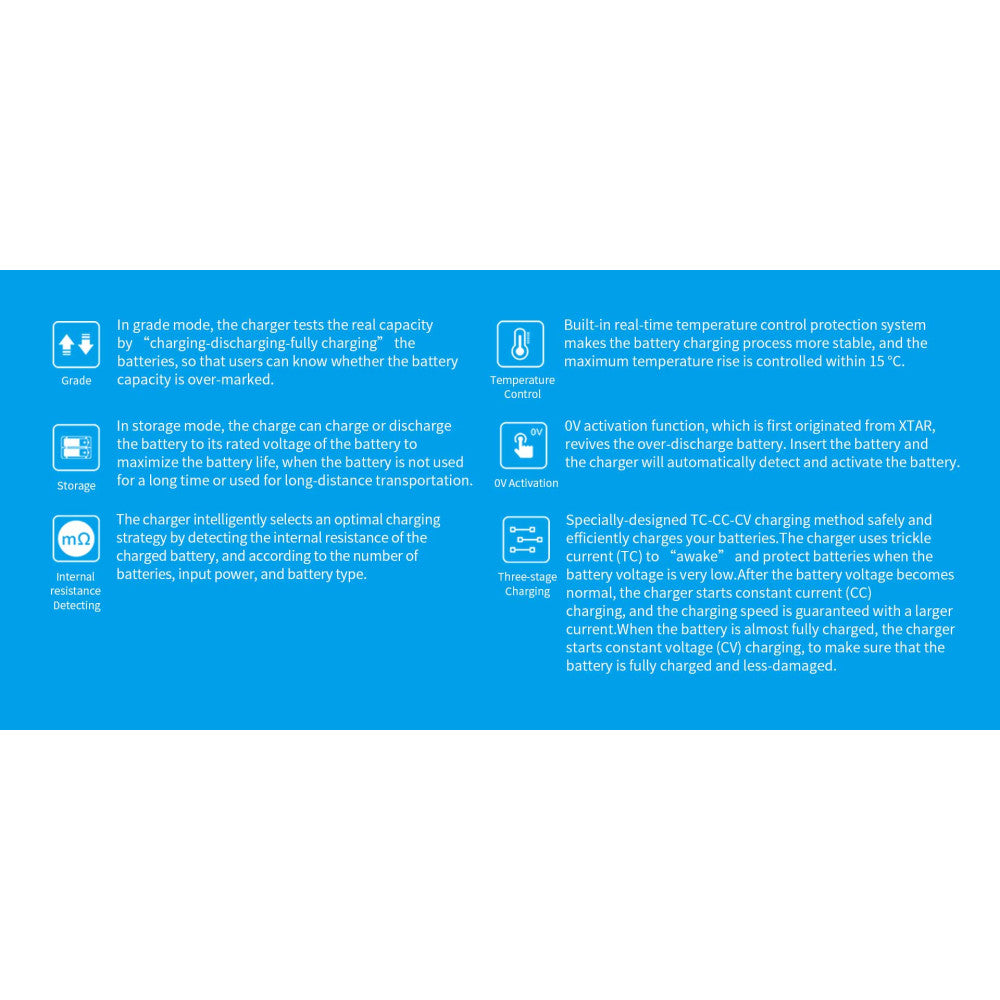

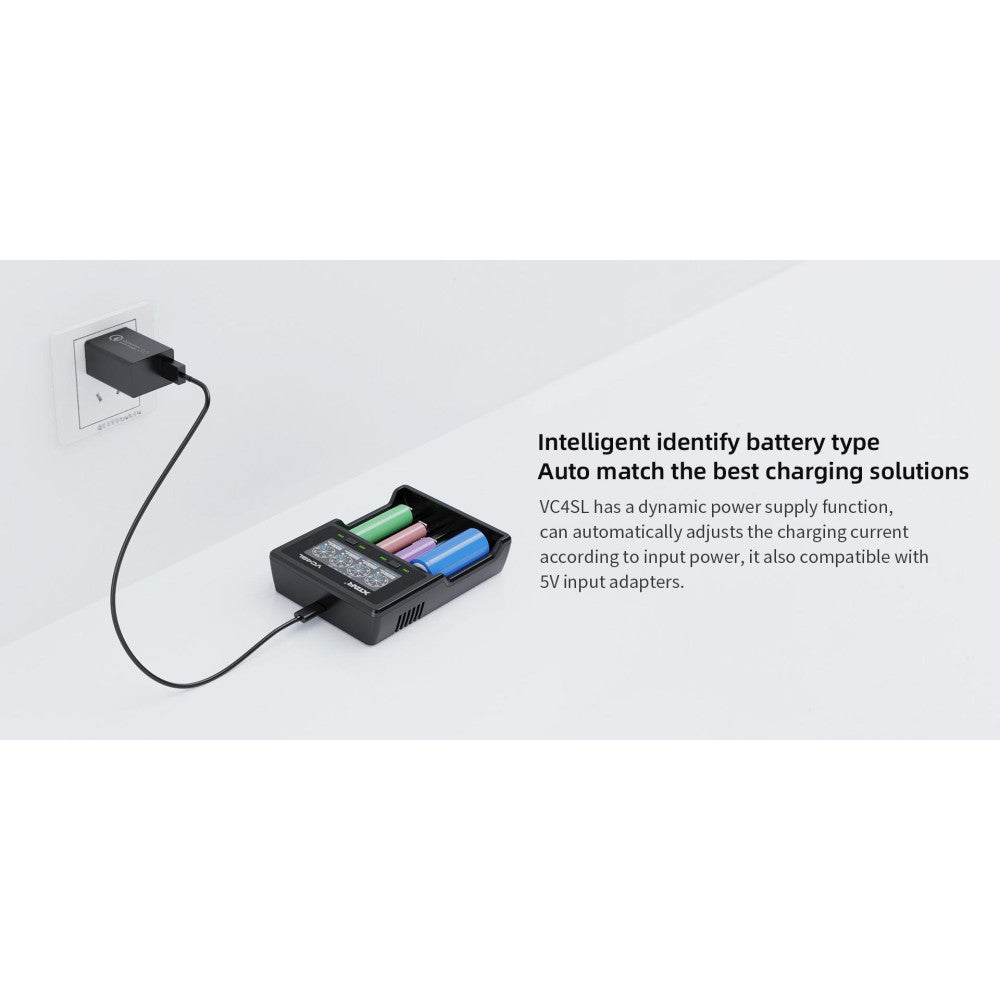

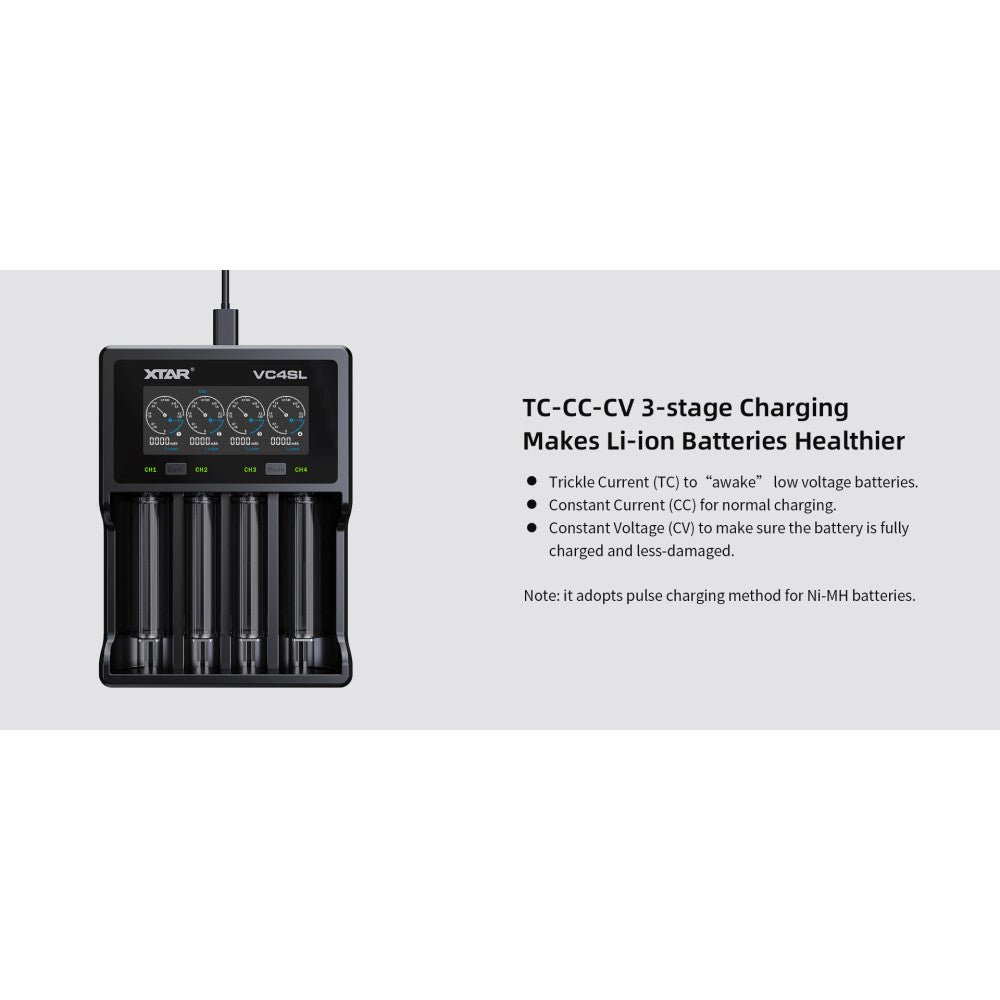

The XTAR VC4SL is a USB-C fast charging 4-bay universal battery charger and analyser, with high definition LCD screen which displays charging current, battery voltage and capacity, as well as time remaining until charge is completed. It automatically detects battery type and adjusts charging method to suit: three stage charging (TC-CC-CV) for Li-Ion; and pulse charging for NiMH / NiCd

• Accurate display battery status
• Input via USB Type-C port
• Compatible with 3.6/3.7V Li-ion and 1.2V Ni-MH batteries
• Can charge protected 21700 batteries

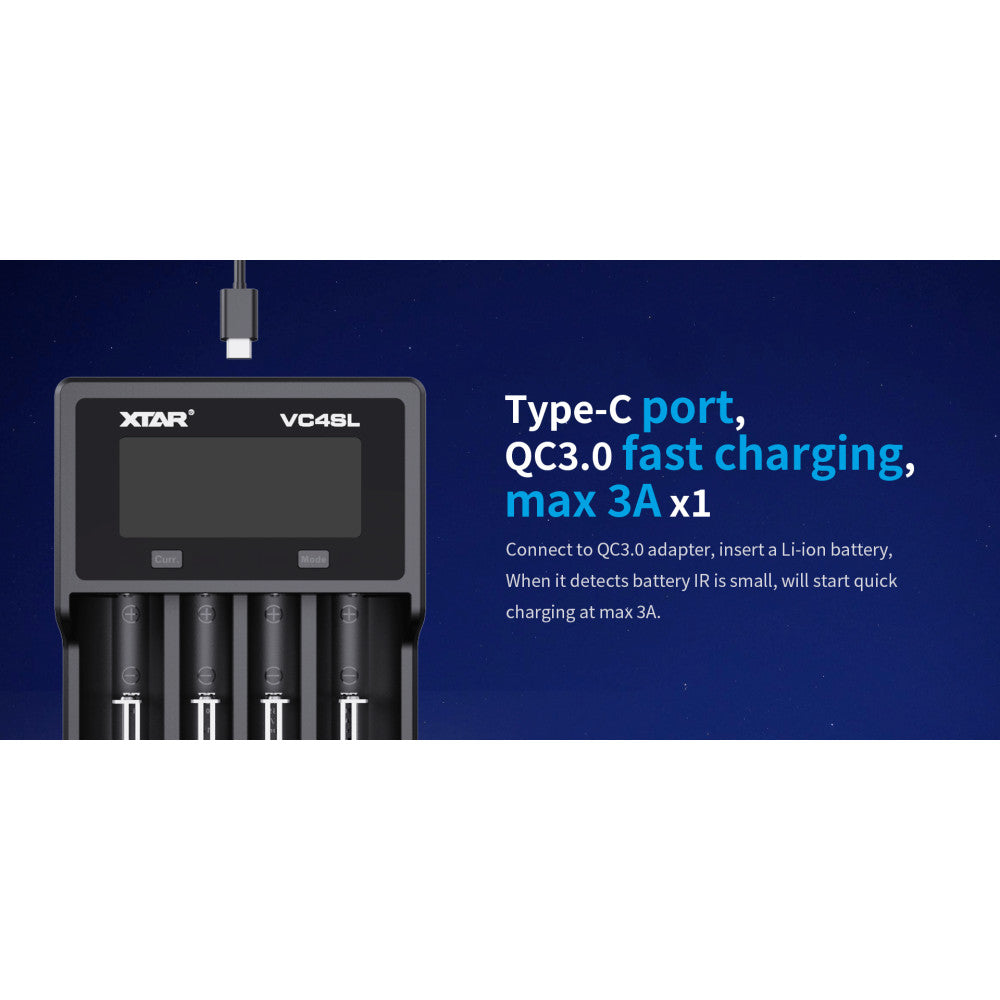

• QC3.0 fast charge, max 3A for a single slot

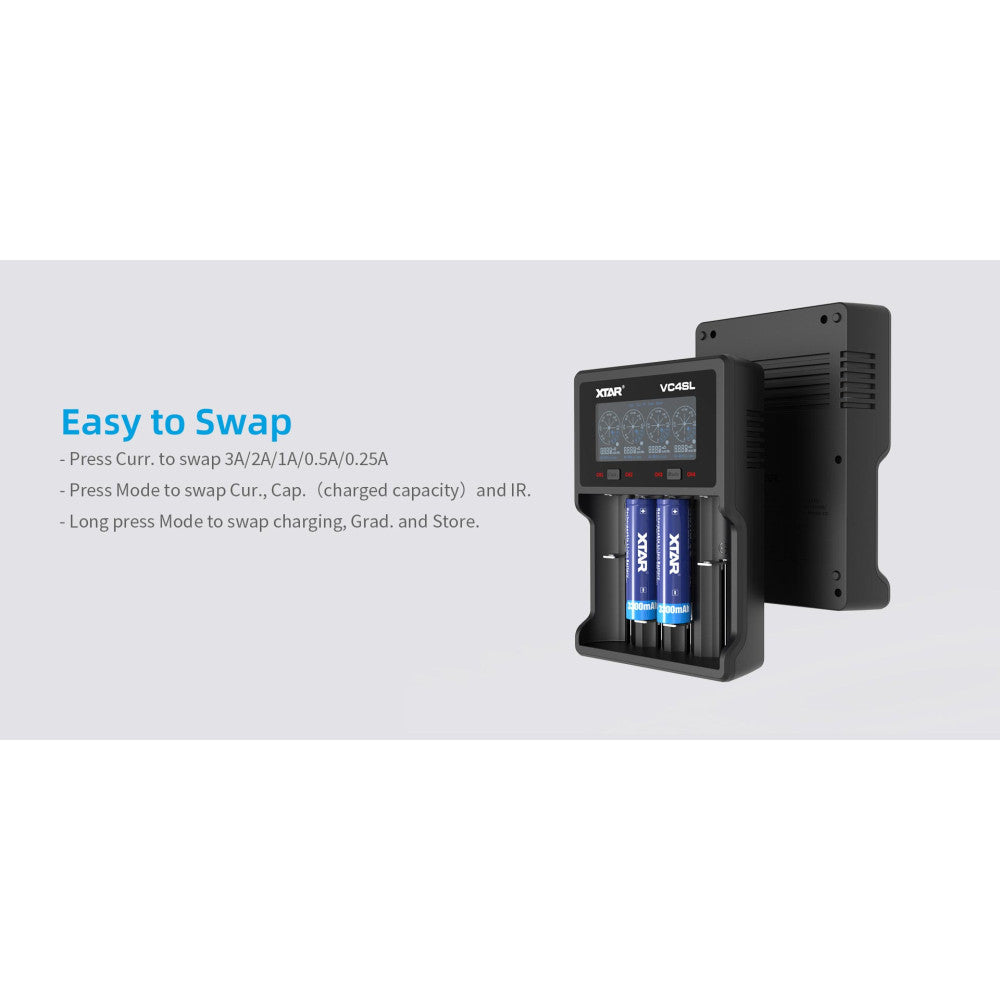

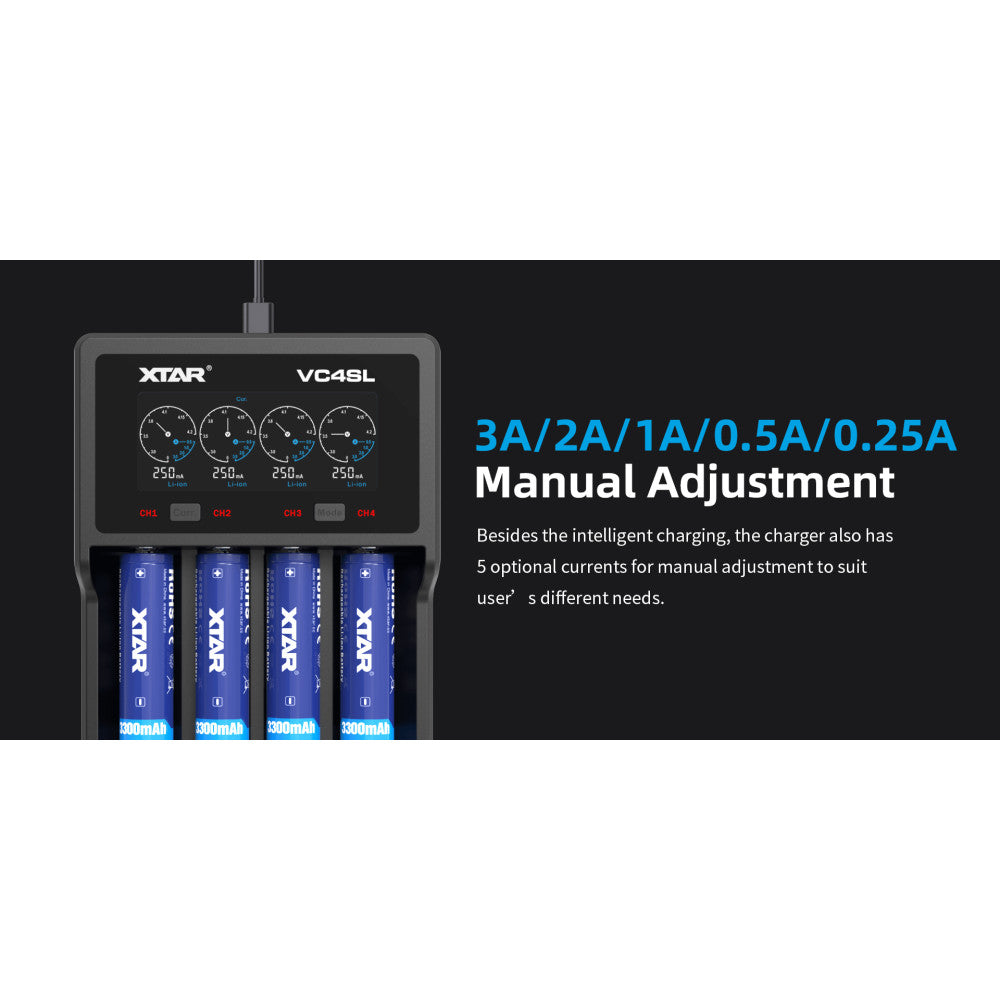

• Control charging current by yourself (0.25A to 3A)

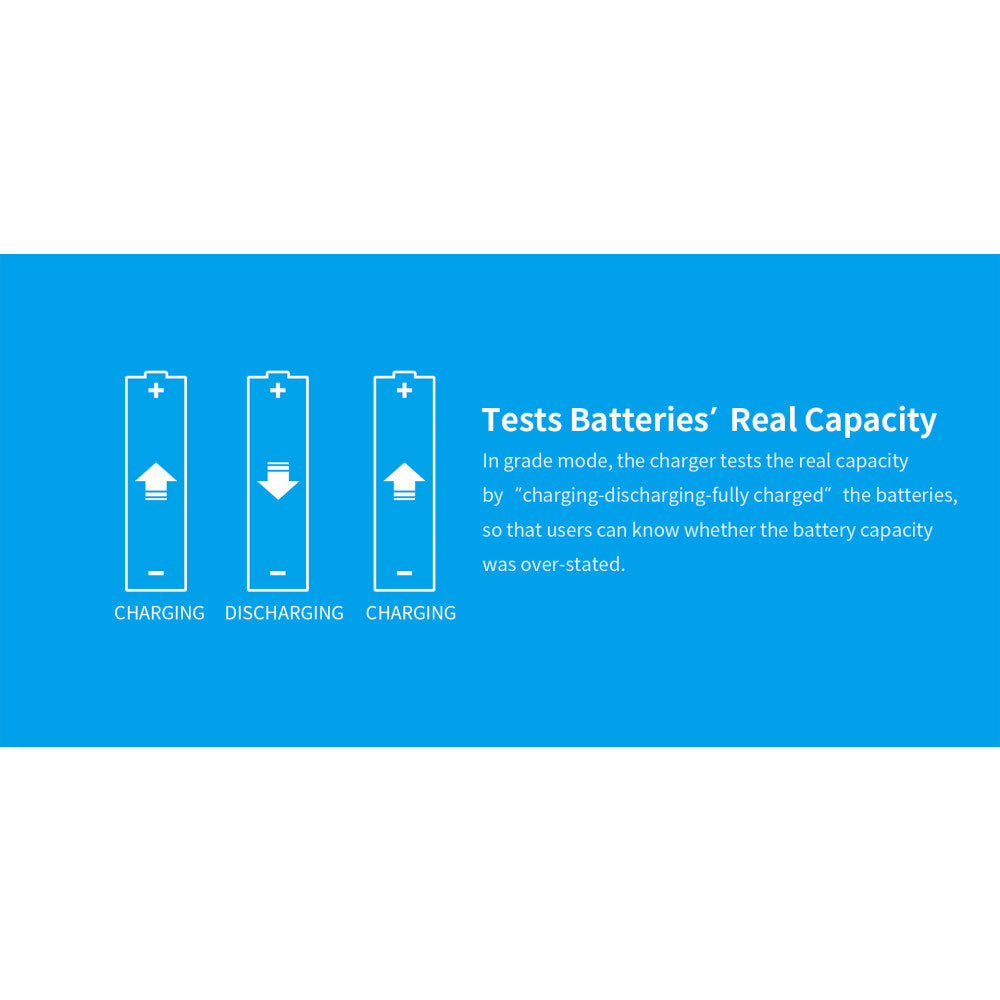

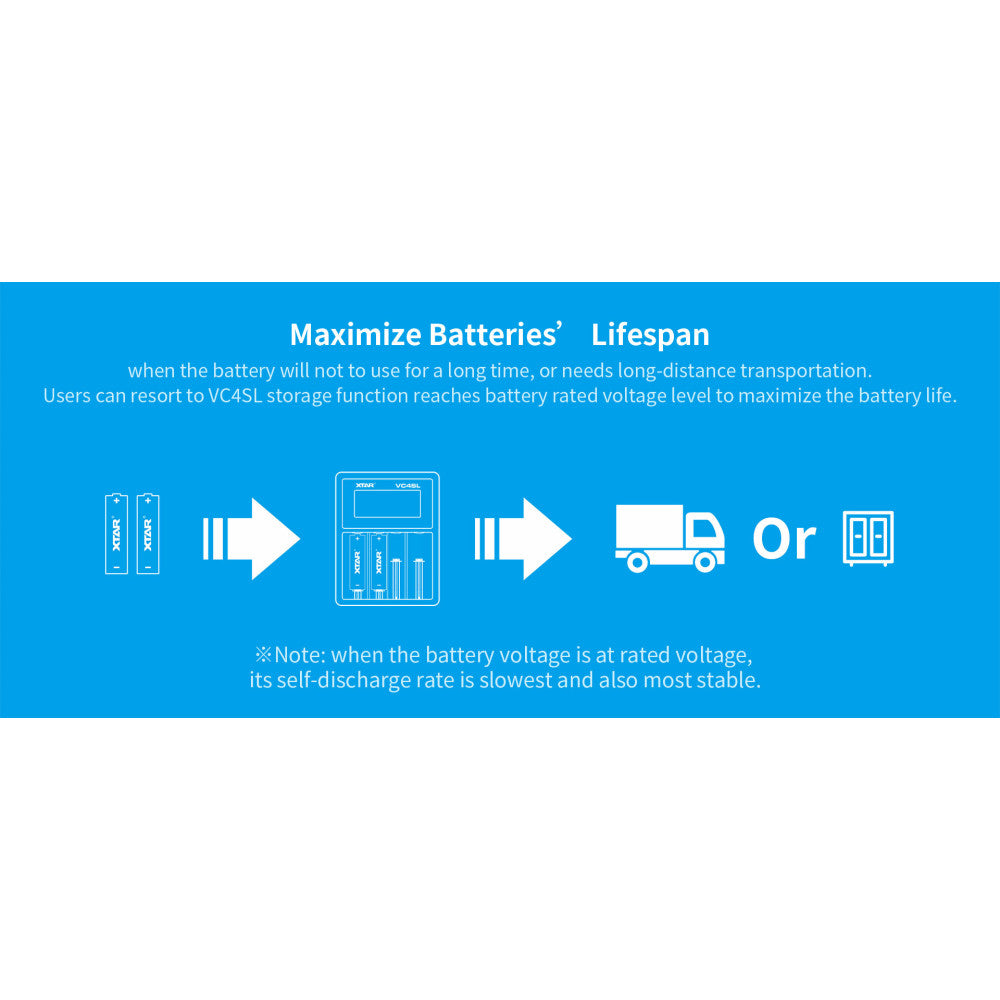

• Battery real capacity test and storage function
• Revive most of over-discharged batteries
• Safe charging with multiple protections

• Soft start current and automatic shut-off to avoid damaging batteries.

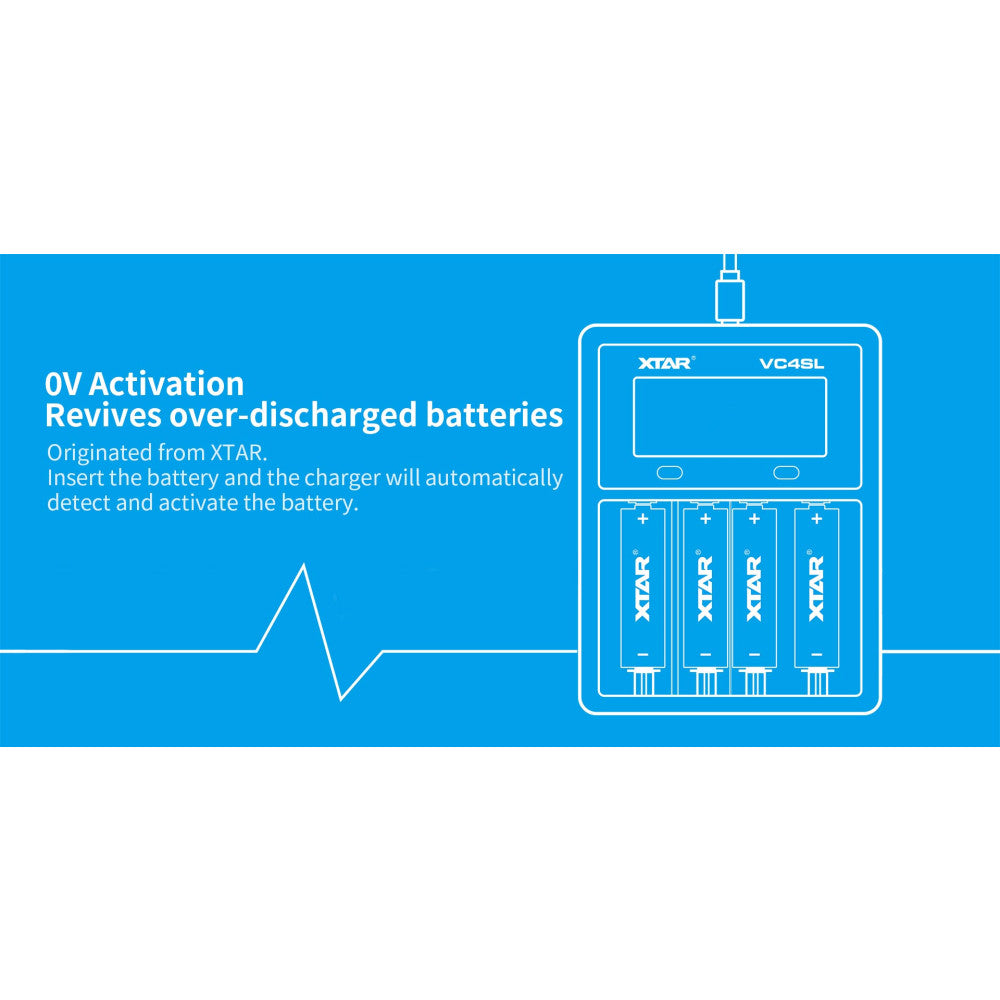

• 0V activation which may help recover over-discharged batteries

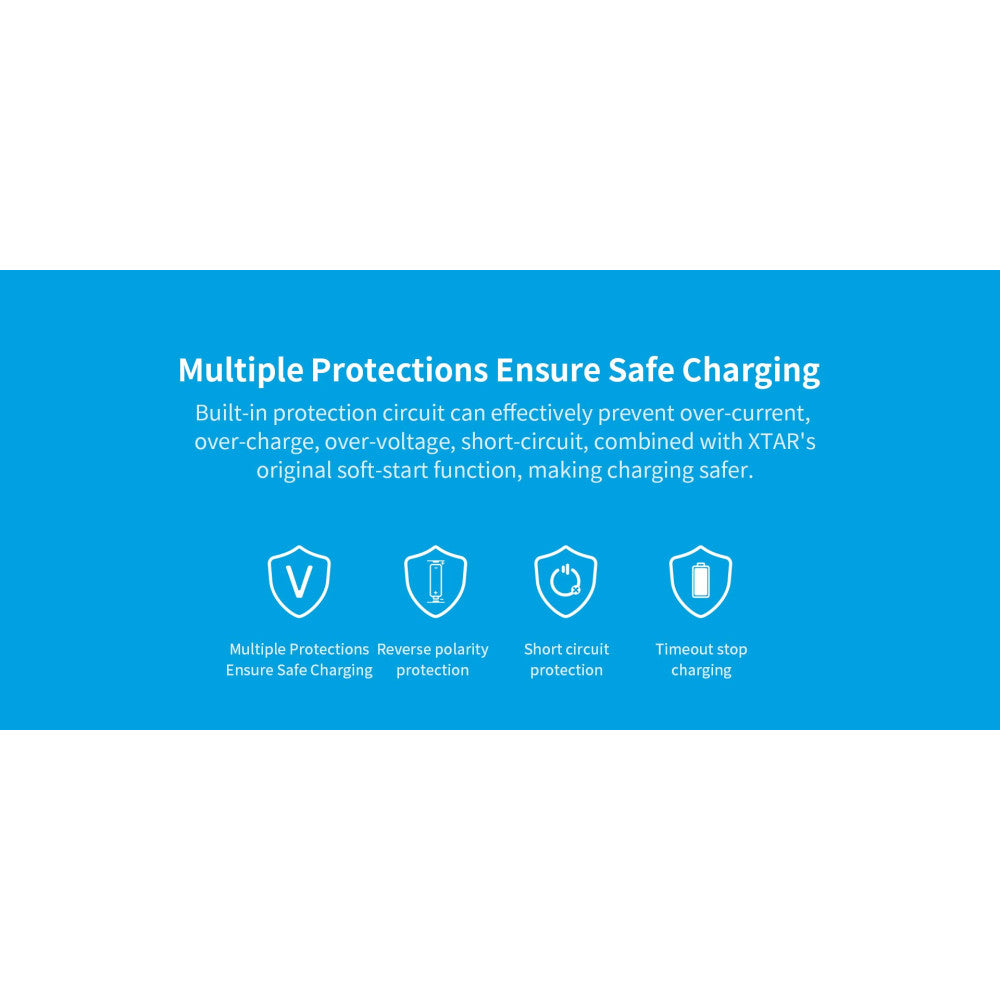

• Reverse polarity, short circuit, overheat protections

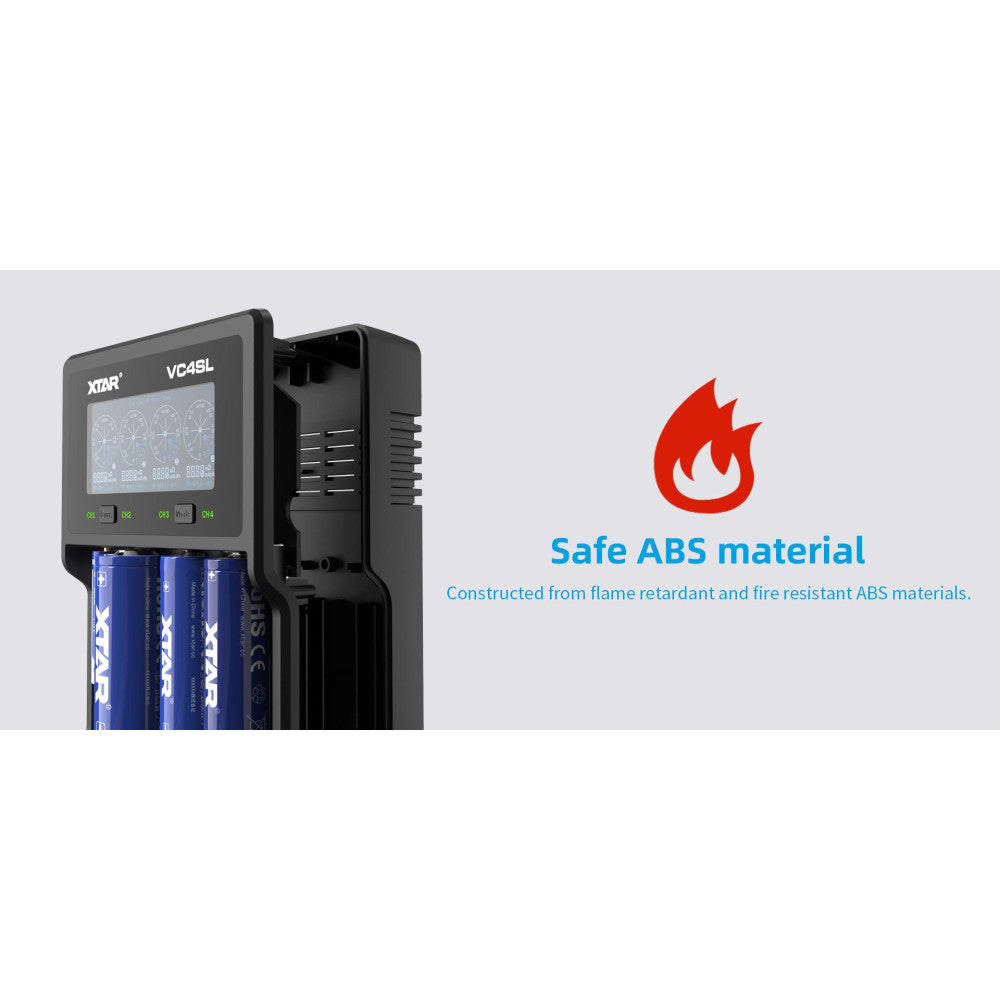

• Effective heat dissipating design and fire resistant ABS case
• Input Power: 5V / 3A or 9V / 2A

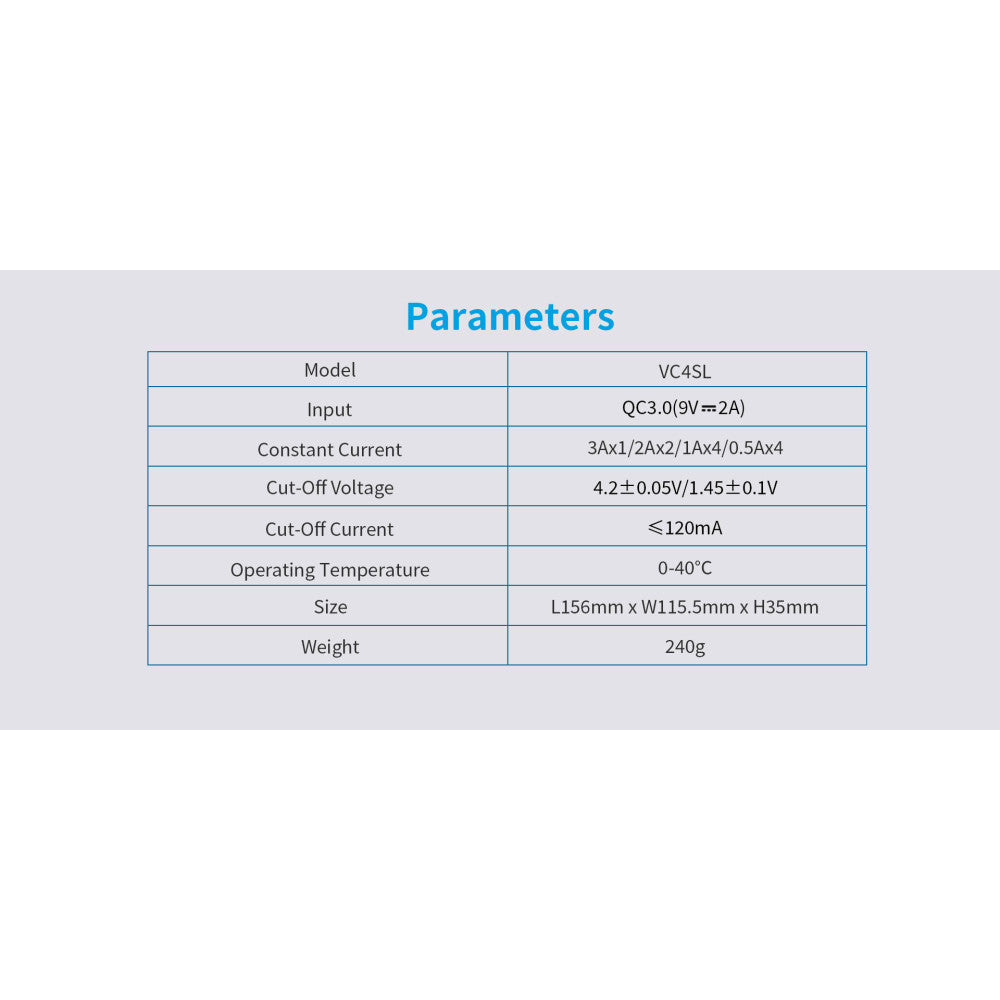

Specifications:

Input – QC3.0 (5V-3A or 9V-2A)

Output – 3A x 1, 2A x 2, 1A x 4, 0.5A x 4

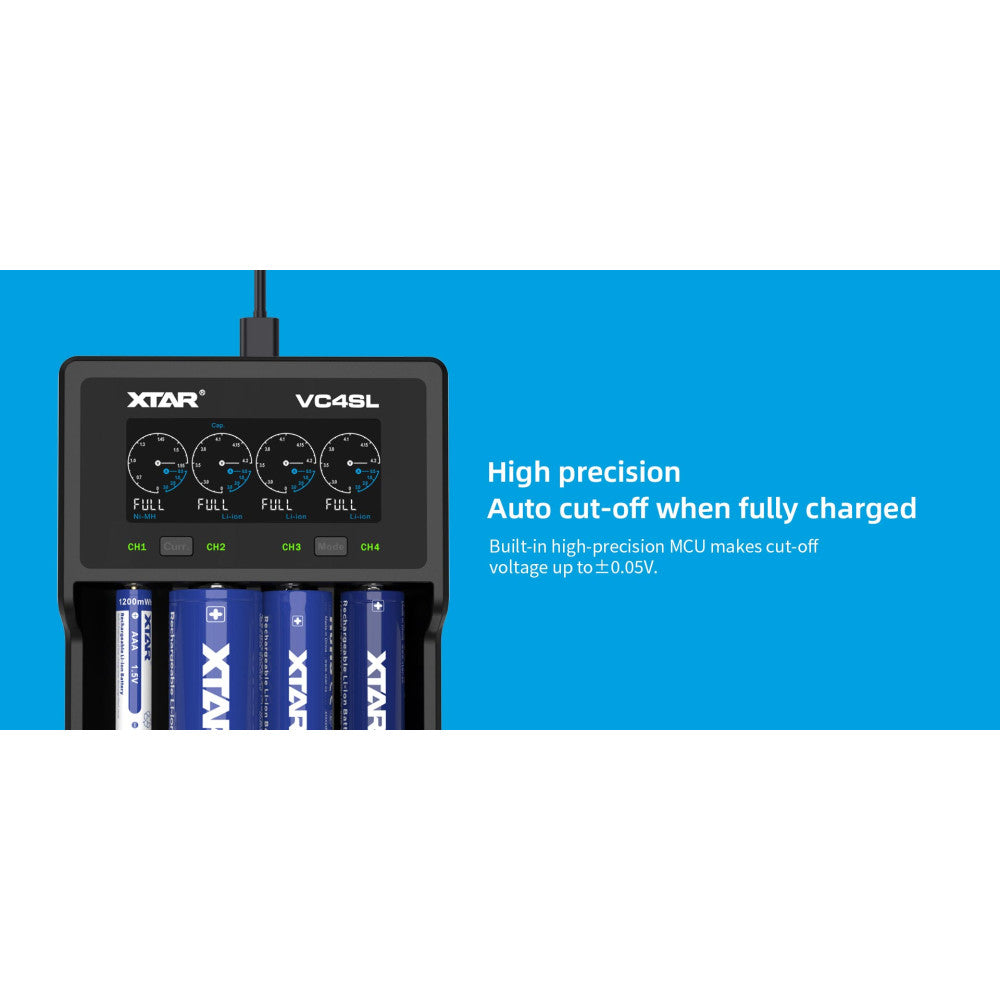

Cutoff Voltage – 4.2V +/- 0.05V / 1.45+/-0.1V

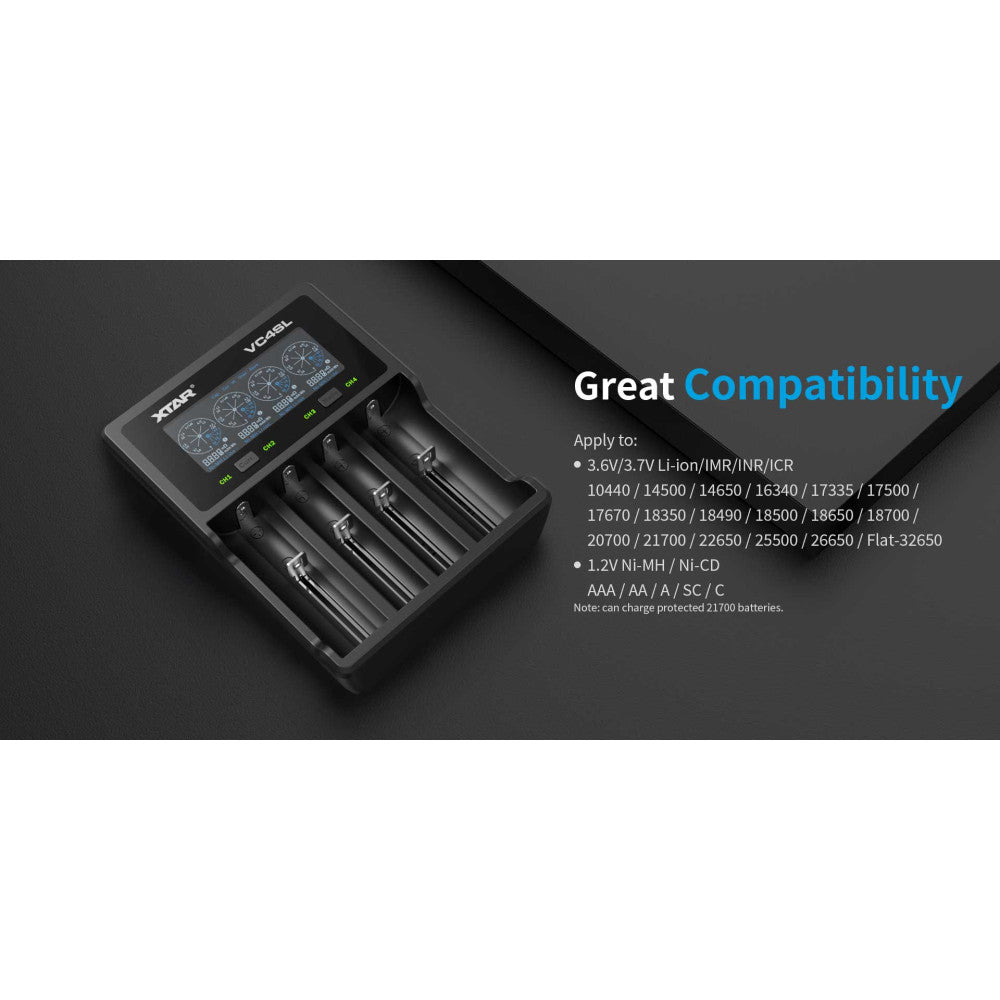

Compatible Batteries:

• 3.6 V / 3.7 V Li-Ion / IMR / INR / ICR: 10440, 14500, 14650, 16340, 17335, 17500, 17670, 18350, 18490, 18500, 18650, 18700, 20700, 21700, 22650, 25500, 26650, 32650
• Ni-MH/Ni-Cd: A, AA, AAA, AAAA, C, D, SC
• Note: Can also charge protected 21700s and up to 4 x 21700s at a time. Only takes 2 x 26650/D size batteries at once.

Dimensions

• Length -156 mm
• Width – 115.5 mm
• Height – 35 mm

Weight – 212 g

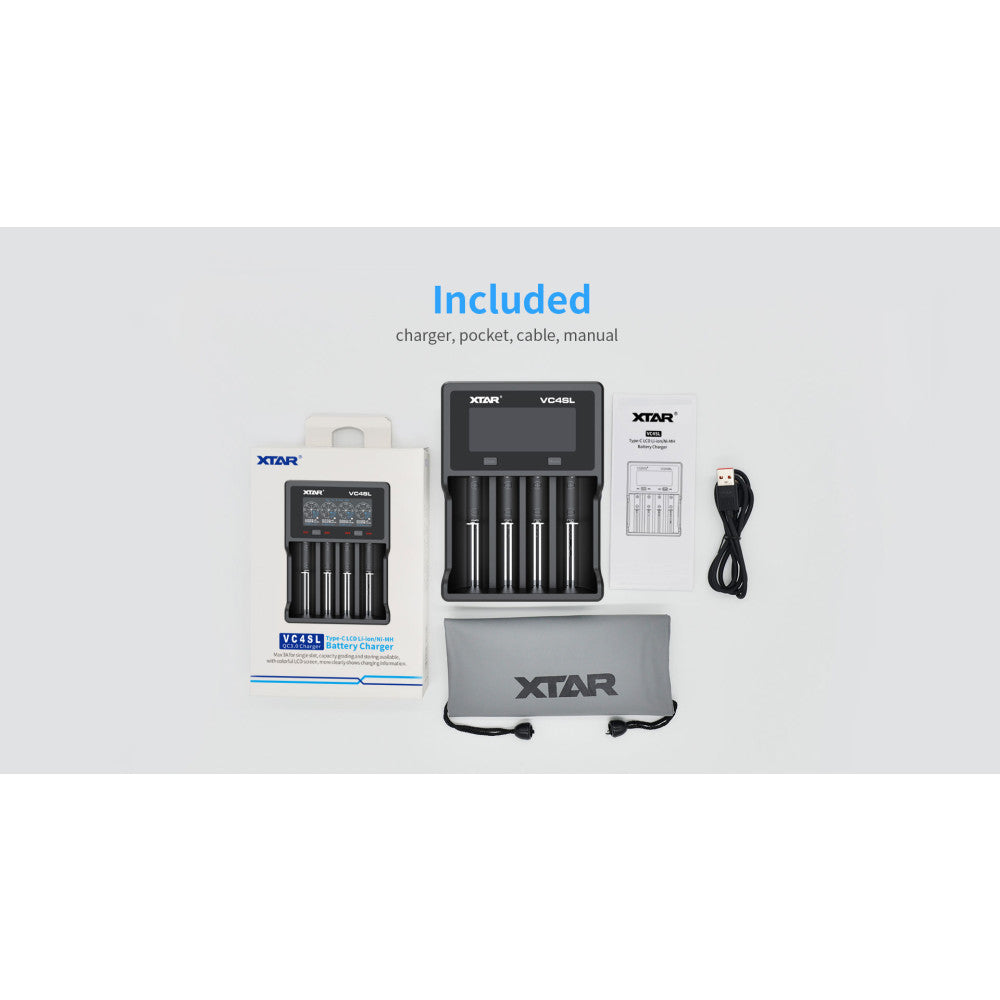

Package Includes;

1 x XTAR VC4SL Charger

1 x Type C USB Cable

1 x Slip Carry Case

User Manual and Warranty Card
